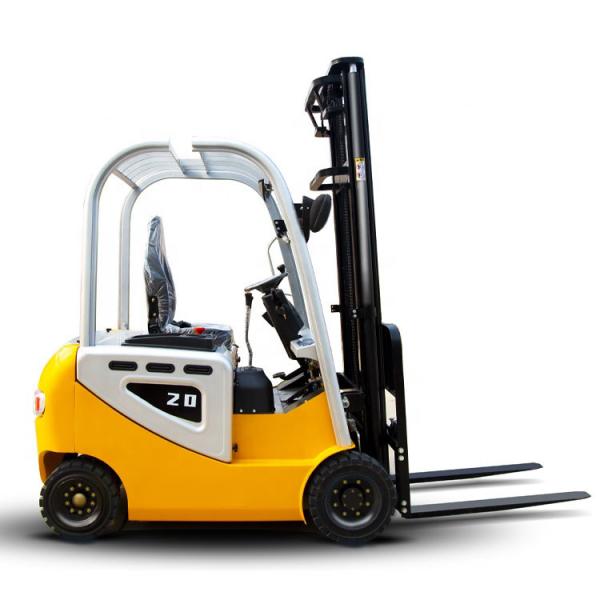

    Solid Tyre Electric Forklift FB20 2 Tons 3-6 Meters Dumping Height

    Ask Lasest Price
    Brand Name : HORNQUIP
    Model Number : FB20
    Certification : CE
    • Product Details
    • Company Profile

    Solid Tyre Electric Forklift FB20 2 Tons 3-6 Meters Dumping Height

    Electric Forklift FB20 (2 tons)

    Feature UOM
    Model  FB20
    driving mode  seated
    rated capacityQkg2000
    load center distanceCmm500
    power mode  lead-acid battery
    wheelbaseL1mm1430
    Tyre
    tyre type  solid tyre
    wheels number(front/rear)  2/2
    front trackW3mm920
    rear trackW2mm898
    tyre(front)  18x7-10
    tyre(rear)  16x6-8
    Size
    front overhangL2mm325
    tilt of the mast,front/rearα/β°5/10
    height,mast retractionH1mm2030
    free lift heightH3mm/
    overall maximum lift heightHmm3000
    height,mast extendedH2mm4055
    overhead guard heightH4mm2110
    lateral Fork Adjustment(Outside of Forks)Max/MinW5mm1040/100
    fork size(LxWxT)T*W*L4mm35*100*920
    truck body length(fork excluded)L'mm2135
    truck body widthW1mm1096
    turning radiusRmm2070
    groubd clearance under mastH5mm88
    Ground clearance at center of wheelbase(laden)H6mm110
    width of aisle right-angle stacking(pallet1000x1000mm clearance 200mm)Astmm3750
    width of aisle right-angle stacking(pallet1200x1200mm clearance 200mm)Astmm3950
    Performance
    travel speed,laden/unladen km/h7.5/8.5
    lifting speed,laden/unladen mm/s180/200
    lowering speed,laden/unladen mm/s450
    maximum negoniable gradient,laden/unladen %15/20
    Weight
    service mass(with battery) kg2710
    axle load:unloaded,front/rear kg
    axle load:loaded,front/rear kg
    battery voltage /nominal capacity V/Ah60V/210Ah
    battery weight kg400
    Electrical configuration
    drive motor power-60 minutes kW5(PMSM)
    lift motor power-15 minutes kW4.5(PMSM)
    drive motor controlling mode  MOSFET/AC
    lifting motor controlling mode  MOSFET/AC
    service brake/parking brake  Hydraulic/Mechanial
